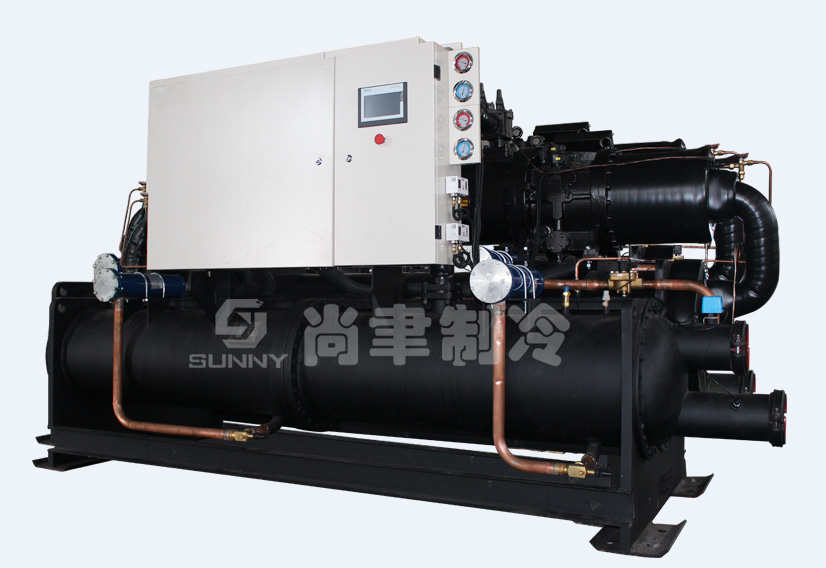

制冷量：300KW～2000KW 出水溫度：7℃～-15℃
產品選項 1.鹽水蒸發器 2.無級能量調節 3.全熱回收/部分熱回收 4.水泵/冷卻塔控制 5.特殊電壓 6.遠程通訊接口
產品特征 1.采用國際知名品牌雙螺桿壓縮機，享有高效、低噪、低磨耗和使用壽命長等特點。 2.采用4段式能量調節或0%-100%無段式自動調節。 3.采用德國西門子PLC可編程控制器，液晶觸摸屏，中英文人機界面。 4.完備的故障保護：高低壓保護、排氣保護、油位保護、水流保護、逆缺項保護、冷凍水防凍保護、冷卻水過高保護等等。 5.高效節能，比干式同類產品能耗降低10%-15%。
產品規格 制冷劑類型：R22/R407C 蒸發器/冷凝器最大水壓：1.0MPa 蒸發器：水側污垢系數0.018m2·℃/KW 冷凝器：水側污垢系數0.044m2·℃/KW 電源制式：380V/3相/50Hz 允許電壓波動：±5% 允許頻率波動：±2%
電子膨脹閥 電子膨脹閥具有比例積分式調節的卓越技術，允許更好地控制空調機組降低運行成本。電子膨脹閥電機與閥何為一體，陶瓷材料的閥板和閥口部件耐磨損，可靠性高，壽命極長。電子膨脹閥，有效地提高了蒸發溫度，同時降低了吸氣過熱度，使機組能效比大大提高。

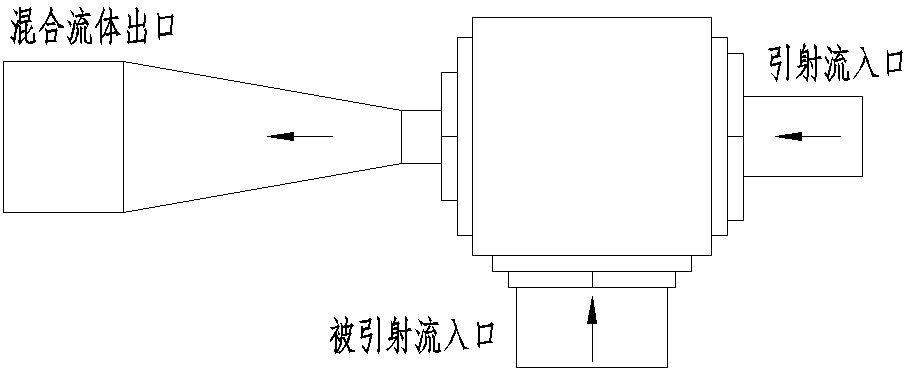

引射回油 滿液式機組采用引射回油技術，其體積小，結構簡單，運動部件少，不易損壞，以少許動力即可達到適當回油效果。
可選用環保型R407C、R134A或R410A冷媒等。 由于技術改進，外形尺寸很可能有所變更，外形尺寸僅供參考，敬請隨時索取安裝尺寸圖。
滿液式螺桿冷水機組技術參數（單壓縮機）
| SWF- | | 機型 Type | 335S | 355S | 385S | 420S | 460S | 550S | 580S | 名義制冷量
Nominal cooling capacity | kW | 335.0 | 355.0 | 385.0 | 420.0 | 460.0 | 550.0 | 580.0 | | 104kcal/h | 28.8 | 30.5 | 33.1 | 36.1 | 39.6 | 47.3 | 49.9 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 62.0 | 65.0 | 71.5 | 78.0 | 86.5 | 100.5 | 106.0 | | 額定電流(A) Rated Current | 104.0 | 109.0 | 120.0 | 131.0 | 146.0 | 169.0 | 178.5 | | 油加熱器(W) Oil heater | 300.0 | | 能量調節 Energy regulation | 0-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效滿液式換熱器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 57.6 | 61.0 | 66.2 | 72.2 | 79.0 | 94.5 | 99.7 | | 水壓降(kPa) Water pressure drop | 45.0 | 45.0 | 48.0 | 52.0 | 53.0 | 56.0 | 58.0 | | 配管管徑 Interface size | DN100 | DN125 | DN150 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 68.2 | 72.2 | 78.4 | 85.6 | 93.9 | 111.8 | 117.9 | | 水壓降(kPa) Water pressure drop | 52.0 | 52.0 | 53.0 | 55.0 | 56.0 | 60.0 | 60.0 | | 配管管徑 Interface size | DN100 | DN125 | DN150 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量 Refrigerant volume | 95.0 | 100.0 | 110.0 | 115.0 | 125.0 | 150.0 | 155.0 | 外形尺寸
Overall dimensions | 長(mm) Length | 3280 | 3280 | 3480 | 3480 | 3510 | 3510 | 3530 | | 寬 Width | 1200 | 1200 | 1200 | 1200 | 1300 | 1400 | 1400 | | 高 Height | 1700 | 1700 | 1730 | 1730 | 1780 | 1780 | 1850 | | 重量 weight | 機組略重 Machine weight | 2250 | 2350 | 2480 | 2850 | 3050 | 3250 | 3450 | | 運行略重 Operating weight | 2500 | 2650 | 2780 | 3150 | 3350 | 3450 | 3650 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | SWF- | | 機型 Type | 635S | 690S | 715S | 820S | 900S | 950S | 1080S | 名義制冷量
Nominal cooling capacity | kW | 635.0 | 690.0 | 715.0 | 820.0 | 900.0 | 950.0 | 1080.0 | | 104kcal/h | 54.6 | 59.3 | 61.5 | 70.5 | 77.4 | 81.7 | 92.9 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 115.0 | 124.0 | 128.0 | 147.5 | 163.5 | 173.5 | 195.0 | | 額定電流(A) Rated Current | 194.0 | 208.5 | 215.0 | 248.0 | 275.0 | 292.0 | 328.0 | | 油加熱器(W) Oil heater | 300.0 | | 能量調節 Energy regulation | 0-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效滿液式換熱器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 109.1 | 118.6 | 122.9 | 140.9 | 154.6 | 163.2 | 185.6 | | 水壓降(kPa) Water pressure drop | 75.0 | 78.0 | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | | 配管管徑 Interface size | DN150 | DN200 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 128.9 | 139.9 | 144.8 | 166.2 | 182.7 | 193.0 | 219.1 | | 水壓降(kPa) Water pressure drop | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | 85.0 | 85.0 | | 配管管徑 Interface size | DN150 | DN200 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量 Refrigerant volume | 165.0 | 180.0 | 190.0 | 215.0 | 235.0 | 250.0 | 285.0 | 外形尺寸
Overall dimensions | 長(mm) Length | 3730 | 3730 | 3760 | 3760 | 3790 | 3790 | 3790 | | 寬 Width | 1400 | 1500 | 1500 | 1500 | 1650 | 1650 | 1650 | | 高 Height | 1900 | 1950 | 2000 | 2050 | 2050 | 2150 | 2150 | | 重量 weight | 機組略重 Machine weight | 3550 | 3650 | 3750 | 3850 | 3900 | 4050 | 4100 | | 運行略重 Operating weight | 3800 | 3950 | 3950 | 4050 | 4150 | 4300 | 4350 |
名義工況：冷凍水進／出水溫度12℃／7℃；冷卻水進／出水溫度30℃／35℃。 溫度條件：冷凍水出水溫度范圍5℃～15℃；冷卻水進水溫度范圍19℃～33℃。
滿液式螺桿冷水機組技術參數（雙壓縮機）
| SWF- | | 機型 Type | 670D | 710D | 770D | 840D | 920D | 1100D | 1160D | 名義制冷量
Nominal cooling capacity | kW | 670.0 | 710.0 | 770.0 | 840.0 | 920.0 | 1100.0 | 1160.0 | | 104kcal/h | 57.6 | 61.1 | 66.2 | 72.2 | 79.1 | 94.6 | 99.8 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 124.0 | 130.0 | 143.0 | 156.0 | 173.0 | 201.0 | 212.0 | | 額定電流(A) Rated Current | 208.0 | 109.0 | 120.0 | 131.0 | 146.0 | 169.0 | 178.5 | | 油加熱器(W) Oil heater | 300.0 | | 能量調節 Energy regulation | 0-12.5%-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效滿液式換熱器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 115.1 | 122.0 | 132.3 | 144.3 | 158.1 | 189.0 | 199.3 | | 水壓降(kPa) Water pressure drop | 62.0 | 62.0 | 65.0 | 65.0 | 68.0 | 72.0 | 72.0 | | 配管管徑 Interface size | DN150 | DN200 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 136.4 | 144.3 | 156.9 | 171.1 | 187.8 | 223.5 | 235.7 | | 水壓降(kPa) Water pressure drop | 55.0 | 55.0 | 58.0 | 58.0 | 60.0 | 65.0 | 65.0 | | 配管管徑 Interface size | DN150 | DN200 | DN250 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量 Refrigerant volume | 190.0 | 200.0 | 220.0 | 230.0 | 250.0 | 300.0 | 310.0 | 外形尺寸
Overall dimensions | 長(mm) Length | 4190 | 4210 | 4210 | 4440 | 4440 | 4470 | 4470 | | 寬 Width | 1250 | 1400 | 1400 | 1500 | 1500 | 1650 | 1650 | | 高 Height | 1700 | 1700 | 1730 | 1730 | 1780 | 1780 | 1850 | | 重量 weight | 機組略重 Machine weight | 4750 | 4950 | 5200 | 6000 | 6400 | 6850 | 7250 | | 運行略重 Operating weight | 5000 | 5200 | 5450 | 6250 | 6650 | 7100 | 7500 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | SWF- | | 機型 Type | 1270D | 1380D | 1430D | 1640D | 1800D | 1900D | 2160D | 名義制冷量
Nominal cooling capacity | kW | 1270.0 | 1380.0 | 1430.0 | 1640.0 | 1800.0 | 1900.0 | 2160.0 | | 104kcal/h | 109.2 | 118.7 | 123.0 | 141.0 | 154.8 | 163.4 | 185.8 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 230.0 | 248.0 | 256.0 | 295.0 | 327.0 | 347.0 | 390.0 | | 額定電流(A) Rated Current | 388.0 | 417.0 | 430.0 | 496.0 | 550.0 | 584.0 | 656.0 | | 油加熱器(W) Oil heater | 300.0 | | 能量調節 Energy regulation | 0-12.5%-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效滿液式換熱器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 218.2 | 237.1 | 245.7 | 281.8 | 309.3 | 326.5 | 371.1 | | 水壓降(kPa) Water pressure drop | 75.0 | 78.0 | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | | 配管管徑 Interface size | DN200 | DN250 | DN300 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 257.7 | 279.7 | 289.7 | 332.5 | 365.5 | 386.1 | 438.1 | | 水壓降(kPa) Water pressure drop | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | 85.0 | 85.0 | | 配管管徑 Interface size | DN250 | DN300 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量 Refrigerant volume | 330.0 | 360.0 | 380.0 | 430.0 | 470.0 | 500.0 | 570.0 | 外形尺寸
Overall dimensions | 長(mm) Length | 4690 | 4690 | 4750 | 4750 | 4850 | 4850 | 4850 | | 寬 Width | 1750 | 1800 | 1800 | 1850 | 1850 | 1900 | 1900 | | 高 Height | 2050 | 2100 | 2100 | 2150 | 2150 | 2250 | 2350 | | 重量 weight | 機組略重 Machine weight | 7800 | 8050 | 8250 | 8500 | 8600 | 8950 | 9050 | | 運行略重 Operating weight | 8100 | 8350 | 8550 | 8800 | 8900 | 9250 | 9350 |
名義工況：冷凍水進／出水溫度12℃／7℃；冷卻水進／出水溫度30℃／35℃。 溫度條件：冷凍水出水溫度范圍5℃～15℃；冷卻水進水溫度范圍19℃～33℃。
滿液式螺桿冷水機組技術參數（單壓縮機）-5℃ | SWF- | | 機型 Type | 220SX | 230SX | 245SX | 270SX | 300SX | 350SX | 370SX | 名義制冷量
Nominal cooling capacity | kW | 220.0 | 230.0 | 245.0 | 270.0 | 300.0 | 350.0 | 370.0 | | 104kcal/h | 18.9 | 19.8 | 21.1 | 23.2 | 25.8 | 30.1 | 31.8 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 55.5 | 58.5 | 64.5 | 70.0 | 78.0 | 91.0 | 96.0 | | 額定電流(A) Rated Current | 93.5 | 98.5 | 108.0 | 118.0 | 131.0 | 153.0 | 161.0 | | 油加熱器(W) Oil heater | 300.0 | | 能量調節 Energy regulation | 0-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效滿液式換熱器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 51.8 | 54.1 | 57.6 | 63.5 | 70.6 | 82.4 | 87.1 | | 水壓降(kPa) Water pressure drop | 45.0 | 45.0 | 48.0 | 52.0 | 53.0 | 56.0 | 58.0 | | 配管管徑 Interface size | DN100 | DN125 | DN150 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 61.3 | 64.2 | 68.7 | 75.6 | 84.0 | 98.0 | 103.6 | | 水壓降(kPa) Water pressure drop | 52.0 | 52.0 | 53.0 | 55.0 | 56.0 | 60.0 | 60.0 | | 配管管徑 Interface size | DN100 | DN125 | DN150 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量 Refrigerant volume | 100.0 | 105.0 | 115.0 | 120.0 | 130.0 | 160.0 | 165.0 | 外形尺寸
Overall dimensions | 長(mm) Length | 3280 | 3280 | 3480 | 3480 | 3510 | 3510 | 3530 | | 寬 Width | 1200 | 1200 | 1200 | 1200 | 1300 | 1400 | 1400 | | 高 Height | 1700 | 1700 | 1730 | 1730 | 1780 | 1780 | 1850 | | 重量 weight | 機組略重 Machine weight | 2350 | 2450 | 2600 | 3000 | 3200 | 3400 | 3650 | | 運行略重 Operating weight | 2650 | 2750 | 2900 | 3300 | 3500 | 3600 | 3850 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | SWF- | | 機型 Type | 405SX | 440SX | 455SX | 530SX | 585SX | 625SX | 700SX | 名義制冷量
Nominal cooling capacity | kW | 405.0 | 440.0 | 455.0 | 530.0 | 585.0 | 625.0 | 700.0 | | 104kcal/h | 34.8 | 37.8 | 39.1 | 45.6 | 50.3 | 53.8 | 60.2 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 104.0 | 112.0 | 115.0 | 133.0 | 147.5 | 156.5 | 176.0 | | 額定電流(A) Rated Current | 174.5 | 188.0 | 194.0 | 223.0 | 248.0 | 263.0 | 296.0 | | 油加熱器(W) Oil heater | 300.0 | | 能量調節 Energy regulation | 0-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效滿液式換熱器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 95.3 | 103.5 | 107.1 | 124.7 | 137.6 | 147.1 | 164.7 | | 水壓降(kPa) Water pressure drop | 75.0 | 78.0 | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | | 配管管徑 Interface size | DN150 | DN200 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 113.2 | 122.8 | 126.8 | 147.6 | 163.0 | 173.9 | 194.9 | | 水壓降(kPa) Water pressure drop | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | 85.0 | 85.0 | | 配管管徑 Interface size | DN150 | DN200 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量 Refrigerant volume | 175.0 | 190.0 | 200.0 | 225.0 | 250.0 | 265.0 | 300.0 | 外形尺寸
Overall dimensions | 長(mm) Length | 3730 | 3730 | 3760 | 3760 | 3790 | 3790 | 3790 | | 寬 Width | 1400 | 1500 | 1500 | 1500 | 1650 | 1650 | 1650 | | 高 Height | 1900 | 1950 | 2000 | 2050 | 2050 | 2150 | 2150 | | 重量 weight | 機組略重 Machine weight | 3750 | 3850 | 3950 | 4050 | 4100 | 4250 | 4350 | | 運行略重 Operating weight | 3950 | 4150 | 4250 | 4300 | 4350 | 4500 | 4550 |
名義工況：冷凍水進／出水溫度0℃／-5℃；冷卻水進／出水溫度30℃／35℃。 溫度條件：冷凍水出水溫度范圍-7℃～5℃；冷卻水進水溫度范圍19℃～33℃。 機組冷凍側采用25%乙二醇或20%氯化鈣防凍液。名義工況：冷凍水進／出水溫度0℃／-5℃；冷卻水進／出水溫度30℃／35℃。 溫度條件：冷凍水出水溫度范圍-7℃～5℃；冷卻水進水溫度范圍19℃～33℃。 機組冷凍側采用25%乙二醇或20%氯化鈣防凍液。
滿液式螺桿冷水機組技術參數（雙壓縮機）-5℃ | SWF- | | 機型 Type | 220SX | 230SX | 245SX | 270SX | 300SX | 350SX | 370SX | 名義制冷量
Nominal cooling capacity | kW | 220.0 | 230.0 | 245.0 | 270.0 | 300.0 | 350.0 | 370.0 | | 104kcal/h | 18.9 | 19.8 | 21.1 | 23.2 | 25.8 | 30.1 | 31.8 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 55.5 | 58.5 | 64.5 | 70.0 | 78.0 | 91.0 | 96.0 | | 額定電流(A) Rated Current | 93.5 | 98.5 | 108.0 | 118.0 | 131.0 | 153.0 | 161.0 | | 油加熱器(W) Oil heater | 300.0 | | 能量調節 Energy regulation | 0-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效滿液式換熱器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 51.8 | 54.1 | 57.6 | 63.5 | 70.6 | 82.4 | 87.1 | | 水壓降(kPa) Water pressure drop | 45.0 | 45.0 | 48.0 | 52.0 | 53.0 | 56.0 | 58.0 | | 配管管徑 Interface size | DN100 | DN125 | DN150 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 61.3 | 64.2 | 68.7 | 75.6 | 84.0 | 98.0 | 103.6 | | 水壓降(kPa) Water pressure drop | 52.0 | 52.0 | 53.0 | 55.0 | 56.0 | 60.0 | 60.0 | | 配管管徑 Interface size | DN100 | DN125 | DN150 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量 Refrigerant volume | 100.0 | 105.0 | 115.0 | 120.0 | 130.0 | 160.0 | 165.0 | 外形尺寸
Overall dimensions | 長(mm) Length | 3280 | 3280 | 3480 | 3480 | 3510 | 3510 | 3530 | | 寬 Width | 1200 | 1200 | 1200 | 1200 | 1300 | 1400 | 1400 | | 高 Height | 1700 | 1700 | 1730 | 1730 | 1780 | 1780 | 1850 | | 重量 weight | 機組略重 Machine weight | 2350 | 2450 | 2600 | 3000 | 3200 | 3400 | 3650 | | 運行略重 Operating weight | 2650 | 2750 | 2900 | 3300 | 3500 | 3600 | 3850 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | SWF- | | 機型 Type | 405SX | 440SX | 455SX | 530SX | 585SX | 625SX | 700SX | 名義制冷量
Nominal cooling capacity | kW | 405.0 | 440.0 | 455.0 | 530.0 | 585.0 | 625.0 | 700.0 | | 104kcal/h | 34.8 | 37.8 | 39.1 | 45.6 | 50.3 | 53.8 | 60.2 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 104.0 | 112.0 | 115.0 | 133.0 | 147.5 | 156.5 | 176.0 | | 額定電流(A) Rated Current | 174.5 | 188.0 | 194.0 | 223.0 | 248.0 | 263.0 | 296.0 | | 油加熱器(W) Oil heater | 300.0 | | 能量調節 Energy regulation | 0-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效滿液式換熱器 Flooded high efficiency heat exchanger | | 水流量(m3/h) Flow | 95.3 | 103.5 | 107.1 | 124.7 | 137.6 | 147.1 | 164.7 | | 水壓降(kPa) Water pressure drop | 75.0 | 78.0 | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | | 配管管徑 Interface size | DN150 | DN200 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 113.2 | 122.8 | 126.8 | 147.6 | 163.0 | 173.9 | 194.9 | | 水壓降(kPa) Water pressure drop | 78.0 | 80.0 | 80.0 | 82.0 | 85.0 | 85.0 | 85.0 | | 配管管徑 Interface size | DN150 | DN200 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量 Refrigerant volume | 175.0 | 190.0 | 200.0 | 225.0 | 250.0 | 265.0 | 300.0 | 外形尺寸
Overall dimensions | 長(mm) Length | 3730 | 3730 | 3760 | 3760 | 3790 | 3790 | 3790 | | 寬 Width | 1400 | 1500 | 1500 | 1500 | 1650 | 1650 | 1650 | | 高 Height | 1900 | 1950 | 2000 | 2050 | 2050 | 2150 | 2150 | | 重量 weight | 機組略重 Machine weight | 3750 | 3850 | 3950 | 4050 | 4100 | 4250 | 4350 | | 運行略重 Operating weight | 3950 | 4150 | 4250 | 4300 | 4350 | 4500 | 4550 |
名義工況：冷凍水進／出水溫度0℃／-5℃；冷卻水進／出水溫度30℃／35℃。 溫度條件：冷凍水出水溫度范圍-7℃～5℃；冷卻水進水溫度范圍19℃～33℃。 機組冷凍側采用25%乙二醇或20%氯化鈣防凍液。
|
