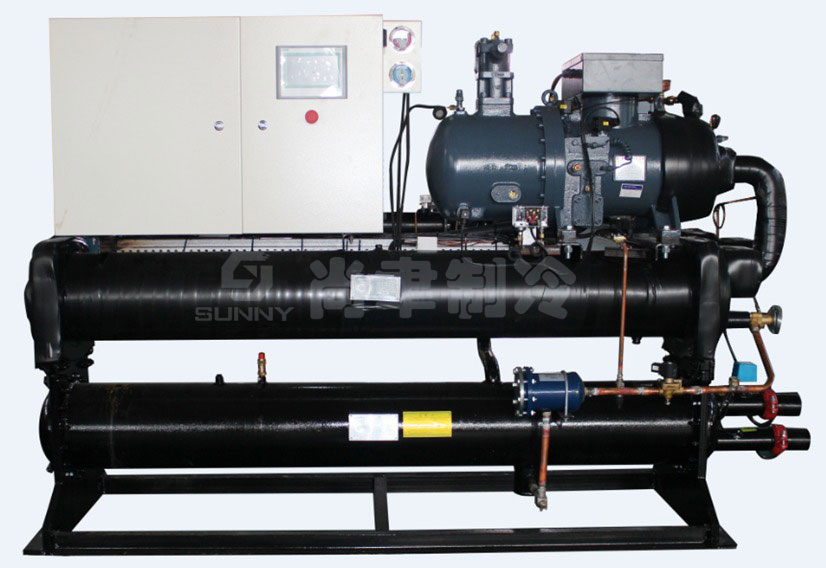

水冷螺桿式低溫機組技術參數（單壓縮機）-5℃
冷水機名義工況：冷凍水進／出水溫度0℃／-5℃；冷卻水進／出水溫度30℃／35℃。 冷水機溫度條件：冷凍水出水溫度范圍-7℃～5℃；冷卻水進水溫度范圍19℃～33℃。 冷水機機組冷凍側采用25%乙二醇或20%氯化鈣防凍液。 | SW- | | 機型 Type | 100S | 135S | 175S | 190S | 235S | 260S | 300S | 320S | 350S | 380S | 名義制冷量
Nominal cooling capacity | kW | 98.0 | 135.0 | 175.6 | 191.1 | 233.3 | 255.6 | 301.1 | 317.8 | 347.8 | 380.0 | | 104kcal/h | 8.4 | 11.6 | 15.1 | 16.4 | 20.1 | 22.0 | 25.9 | 27.3 | 29.9 | 32.7 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 23.0 | 30.0 | 39.0 | 42.0 | 51.0 | 56.0 | 63.0 | 66.0 | 73.0 | 80.0 | | 額定電流(A) Rated Current | 39.2 | 51.6 | 64.7 | 71.0 | 86.4 | 94.1 | 105.9 | 111.4 | 122.7 | 133.8 | | 能量調節 Energy regulation | 0-33%-66%-100% | 0-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效殼管干式換熱器 Pipe dry high efficiency heat exchanger | | 水流量(m3/h) Flow | 16.9 | 23.2 | 30.2 | 32.9 | 40.1 | 44.0 | 51.8 | 54.7 | 59.8 | 65.4 | | 水壓降(kPa) Water pressure drop | 45.0 | 45.0 | 48.0 | 48.0 | 50.0 | 50.0 | 50.0 | 55.0 | 55.0 | 55.0 | | 配管管徑 Interface size | DN65 | DN80 | DN100 | DN125 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 20.8 | 28.4 | 36.9 | 40.1 | 48.9 | 53.6 | 62.6 | 66.0 | 72.4 | 79.1 | | 水壓降(kPa) Water pressure drop | 42.0 | 42.0 | 45.0 | 45.0 | 48.0 | 48.0 | 48.0 | 52.0 | 52.0 | 52.0 | | 配管管徑 Interface size | DN65 | DN80 | DN100 | DN125 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量 Refrigerant volume | 16.0 | 22.0 | 25.0 | 30.0 | 35.0 | 40.0 | 45.0 | 50.0 | 53.0 | 56.0 | 外形尺寸
Overall dimensions | 長(mm) Length | 2450 | 2450 | 2700 | 2850 | 2850 | 2850 | 2850 | 3250 | 3250 | 3250 | | 寬 Width | 660 | 660 | 660 | 890 | 890 | 920 | 920 | 920 | 960 | 985 | | 高 Height | 1450 | 1590 | 1590 | 1600 | 1690 | 1690 | 1690 | 1690 | 1750 | 1750 | | 重量 weight | 機組略重 Machine weight | 850 | 1050 | 1150 | 1270 | 1340 | 1430 | 1640 | 1710 | 1780 | 1850 | | 運行略重 Operating weight | 900 | 1150 | 1300 | 1420 | 1540 | 1670 | 1890 | 1930 | 1970 | 2050 |
水冷螺桿式低溫機組技術參數（雙壓縮機）-5℃
名義工況：冷凍水進／出水溫度0℃／-5℃；冷卻水進／出水溫度30℃／35℃。 溫度條件：冷凍水出水溫度范圍-7℃～5℃；冷卻水進水溫度范圍19℃～33℃。 機組冷凍側采用25%乙二醇或20%氯化鈣防凍液。
| SW- | | 機型 Type | 415S | 495S | 520S | 570S | 620S | 640S | 740S | 820S | 870S | 980S | 名義制冷量
Nominal cooling capacity | kW | 415.0 | 495.0 | 521.1 | 571.1 | 617.8 | 642.2 | 741.8 | 821.1 | 871.7 | 981.8 | | 104kcal/h | 35.7 | 42.6 | 44.8 | 49.1 | 53.1 | 55.2 | 64.3 | 70.6 | 75.4 | 84.9 | | 運行控制方式 Run control | PLC可編程控制器全自動控制 Use PLC microcomputer control | | 電源 Power Supply | 380V/3N/50HZ | | 啟動類型 Startup type | Y-△ | | 壓縮機Compressor | 型式 Type | 5:6非對稱半封閉雙螺桿壓縮機 Semi-closed 5:6 asymmetric twin-screw compressor | 輸入功率(kW)
Refrigeration input power | 88.0 | 103.0 | 108.0 | 118.0 | 126.0 | 130.0 | 150.0 | 167.0 | 177.0 | 199.0 | | 額定電流(A) Rated Current | 148.8 | 172.8 | 182.5 | 197.7 | 212.8 | 219.6 | 253.0 | 280.7 | 298.1 | 335.2 | | 能量調節 Energy regulation | 0-25%-50%-75%-100% | | 蒸發器Evaporator | 型式 Type | 高效殼管干式換熱器 Pipe dry high efficiency heat exchanger | | 水流量(m3/h) Flow | 71.4 | 85.1 | 89.6 | 98.2 | 106.3 | 110.5 | 128.6 | 141.2 | 150.8 | 169.9 | | 水壓降(kPa) Water pressure drop | 55.0 | 58.0 | 60.0 | 62.0 | 68.0 | 68.0 | 68.0 | 70.0 | 70.0 | 72.0 | | 配管管徑 Interface size | DN125 | DN150 | DN200 | | 冷凝器Condenser | 型式 Type | 高效殼管式換熱器 Pipe high efficiency heat exchanger | | 水流量(m3/h) Flow | 86.5 | 102.9 | 108.2 | 118.5 | 127.9 | 132.8 | 154.4 | 170.0 | 181.2 | 204.1 | | 水壓降(kPa) Water pressure drop | 55.0 | 56.0 | 58.0 | 60.0 | 65.0 | 65.0 | 65.0 | 68.0 | 68.0 | 70.0 | | 配管管徑 Interface size | DN125 | DN150 | DN200 | | 制冷劑Refrigerant | 類型 Type | R22 | | 充注量 Refrigerant volume | 60.0 | 65.0 | 70.0 | 80.0 | 90.0 | 95.0 | 110.0 | 125.0 | 133.0 | 145.0 | 外形尺寸
Overall dimensions | 長(mm) Length | 3250 | 3250 | 3250 | 3250 | 3250 | 3650 | 3650 | 3650 | 3800 | 3800 | | 寬 Width | 1000 | 1050 | 1050 | 1050 | 1100 | 1130 | 1130 | 1250 | 1250 | 1300 | | 高 Height | 1750 | 1752 | 1770 | 1770 | 1770 | 1870 | 1870 | 1870 | 1870 | 1950 | | 重量 weight | 機組略重 Machine weight | 2080 | 2300 | 2570 | 2850 | 2900 | 3100 | 3450 | 4050 | 4230 | 4450 | | 運行略重 Operating weight | 2330 | 2550 | 2950 | 3000 | 3200 | 3450 | 3750 | 4450 | 4600 | 4850 |
|
